Description
Product Features
- Fully rugged Touch Screen Display solution for all mobile office workers
- Integrated DeX technology – no hub required
- On-board I/O includes gigabit Ethernet, HDMI 1.4, superspeed USB-C and multiple USB 3.1 type a ports
- 10-point capacitive Touch Screen with gorilla glass
- Two power delivery (pd) options via USB type-C (5V@3A, 9V@2A)
- 1200 nits of brightness
- Pair of 4W front-facing stereo speakers
- Input selector switch to toggle between USB-C and HDMI
- Indicator lights communicate when TSD-201 is powered up and when a device is connected.
- Night mode offers red monochrome for reduced eye strain
- Sleep mode equipped to reduce power consumption
- Power button allows screen to be blacked out for privacy without full reboot

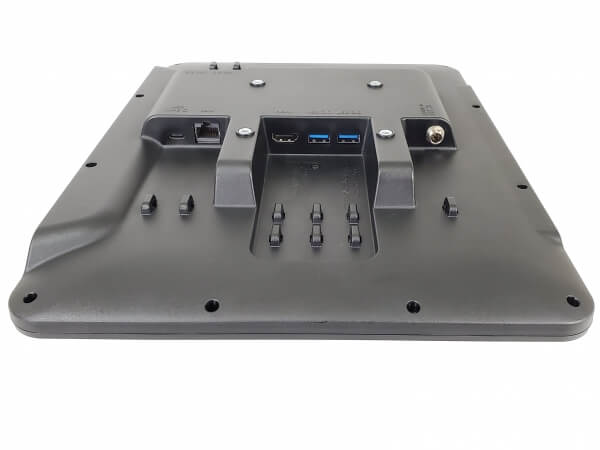

- Side and bottom-facing ports with integrated strain relieving
- Top-mounted buttons allow easy access to Touch Screen controls
- Complete your set up with a KB-108 keyboard or other Havis KB-100 Series products
- USB-C port supports device mirroring in equipped phones, tablets, and laptops
Product Specs
- Glass: anti-glare
- Contrast ratio: 700:1
- Resolution: 1920 x 1080
- Brightness: 1200 nits
- Display color: 16.7M
- Aspect ratio: 16:9
- Viewing angle: 89 degrees max
- Active area: 276.48mm x 155.52mm
- Power: 11-16 VDC, 12 VDC output
- OSD Buttons: Brightness +/-, volume +/-, power, input selector
- Gross Weight: 4 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
