Description
Product Features

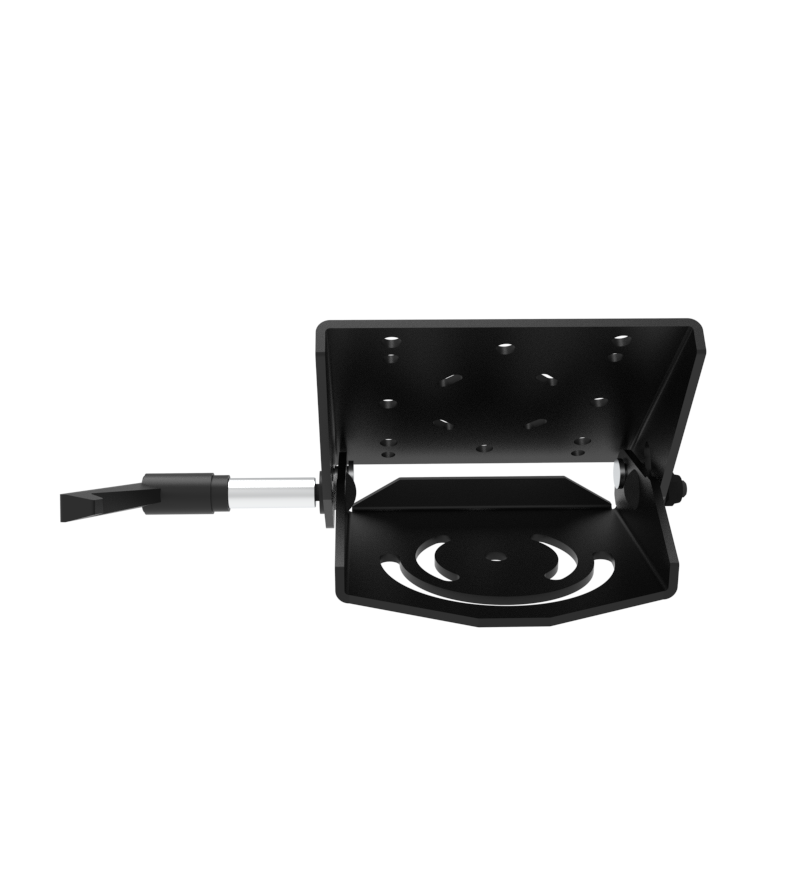

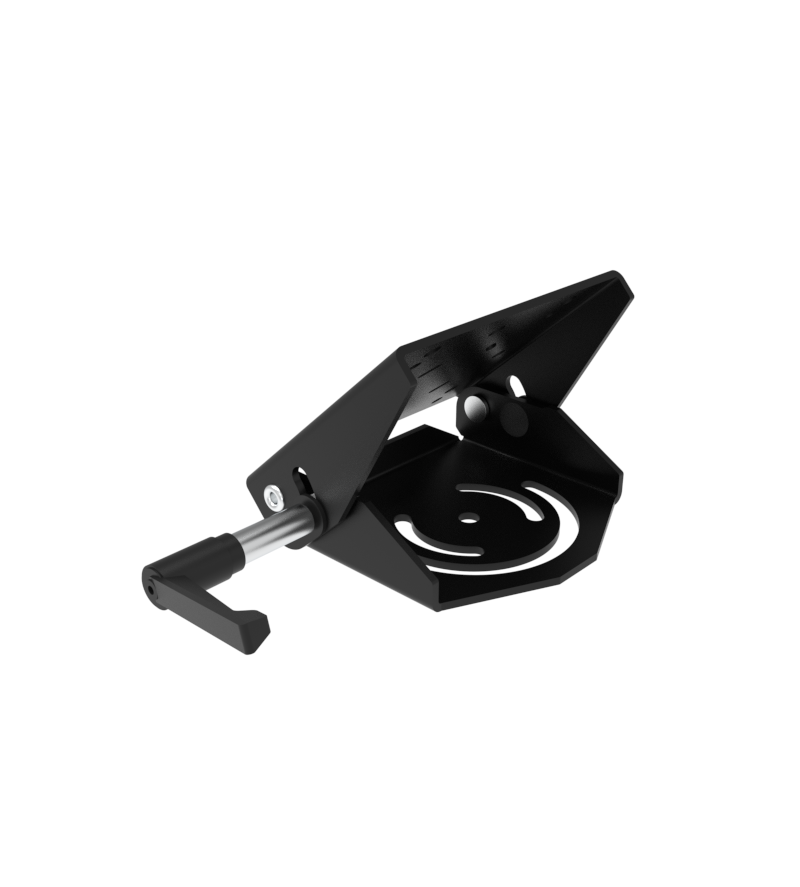

- Low profile tilt swivel motion device
- 1.38″ overall height
- 45° vertical tilt movement
- Depending on the device it is mounted to, it can provide 360°, 180° or 90° degree horizontal rotation
- Used to mount Havis laptop docking stations, UT-Series and C-KBM Series to telescoping computer base C-HDM-200 Series or some Havis consoles

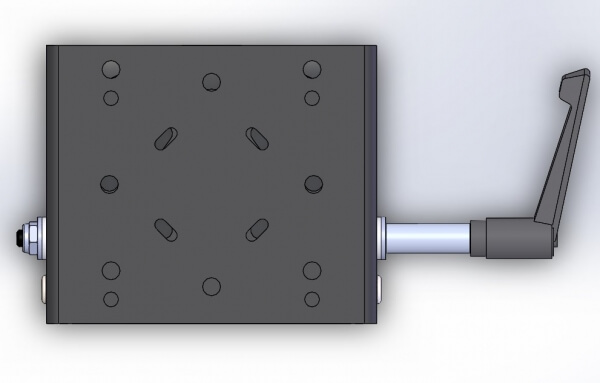

- Includes the following industry standard hole patterns: VESA 75 and AMPS
- Includes the following Havis hole patterns: 3″ hole laptop docking station, UT-1000 Series, UT-2000 Series, and C-KBM-100 Series patterns
- Cost-efficient product with motion versatility
- Easy-adjust and quick-release handle also locks down the position of the device
- Includes short locking handle
- Complementary to the C-MD-114 swing arm Series
- Material: heavy-gauge steel for rugged durability with black powder coat for anti-glare and rust prevention
- Not recommended for tablet applications, unless 45° tilt is desired
Product Specs
- Gross Weight: 3 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
