Description
Product Features

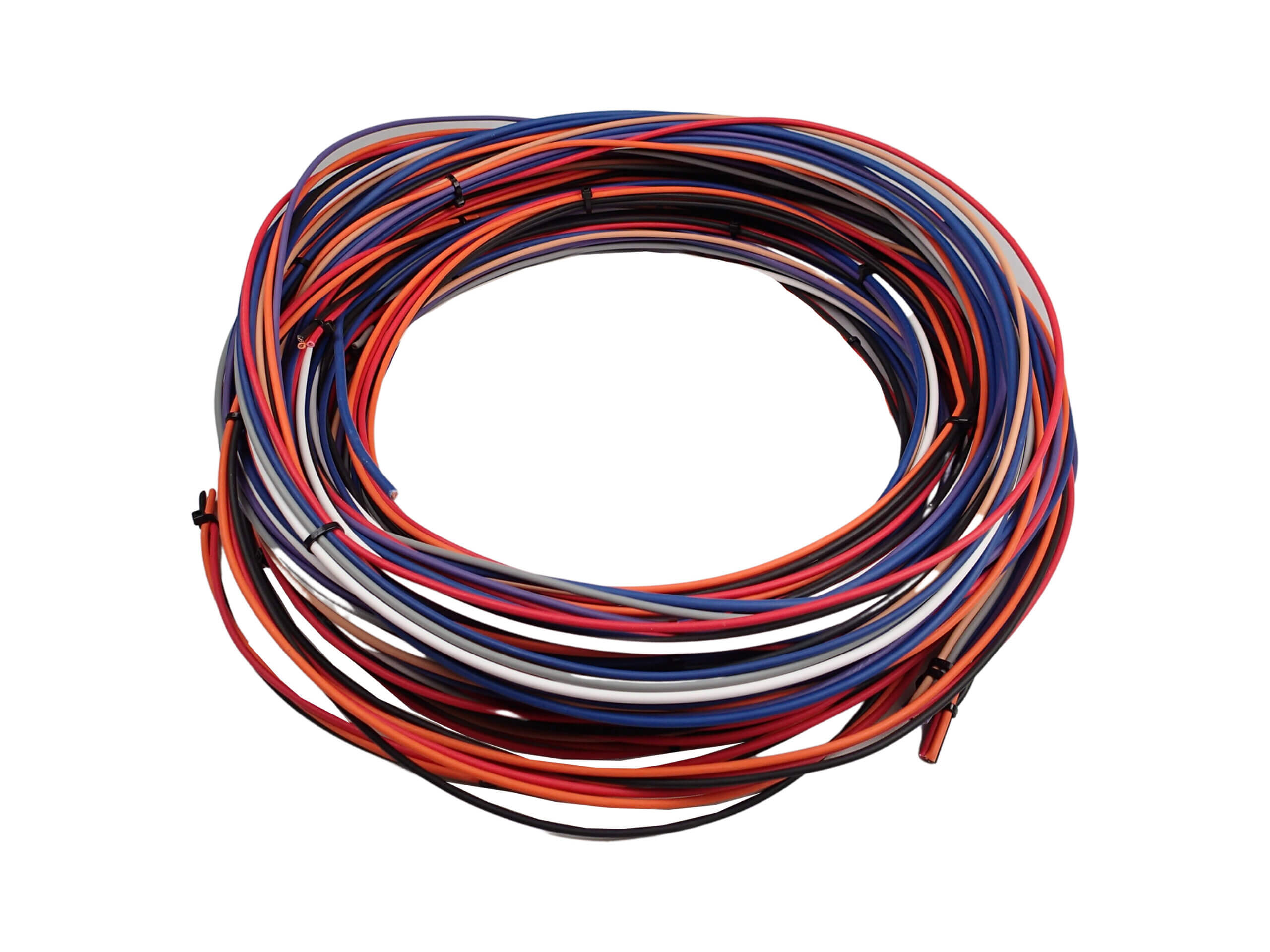

- Master primary wire harness for all Havis, inc. prisoner transport inserts

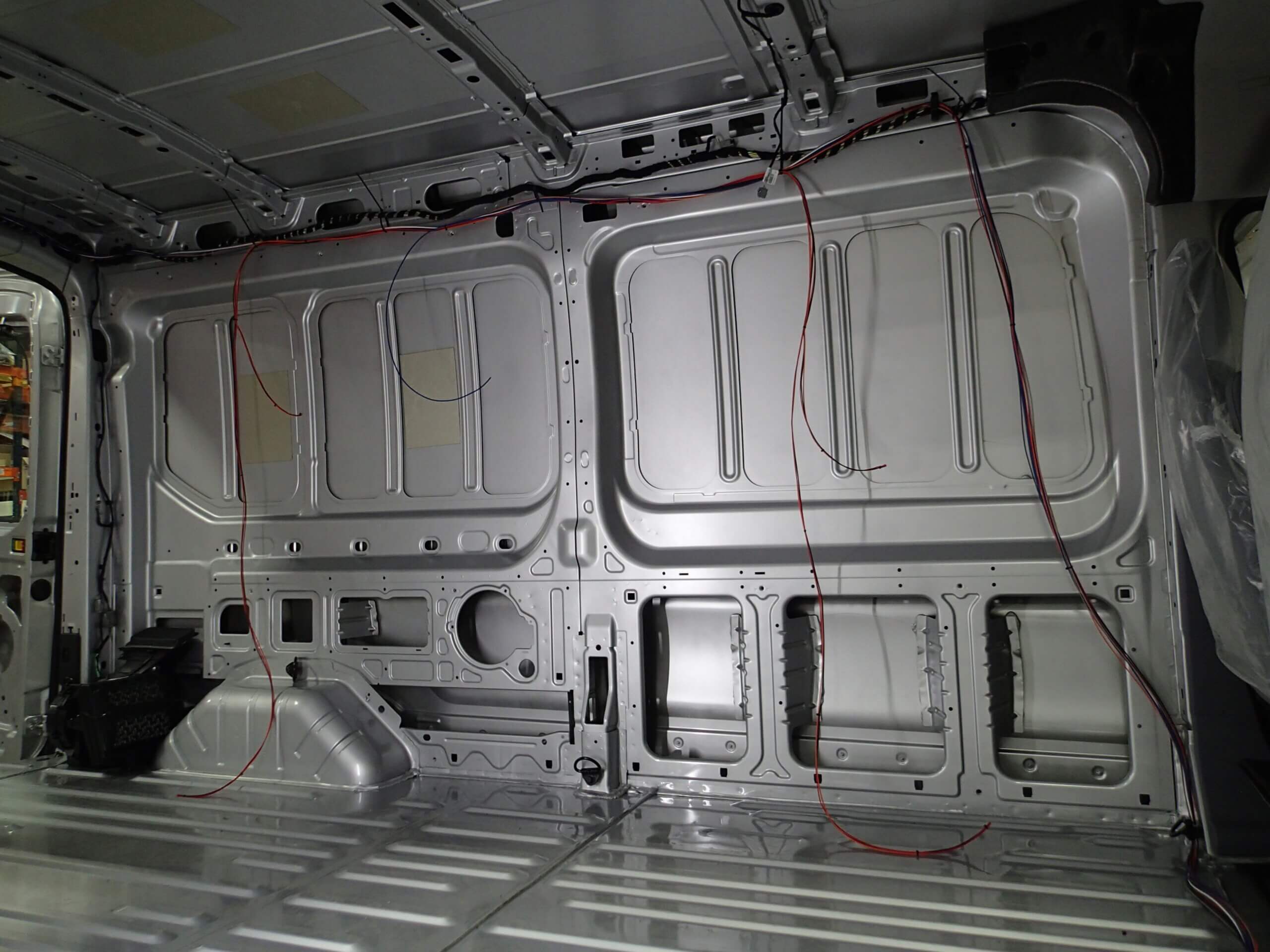

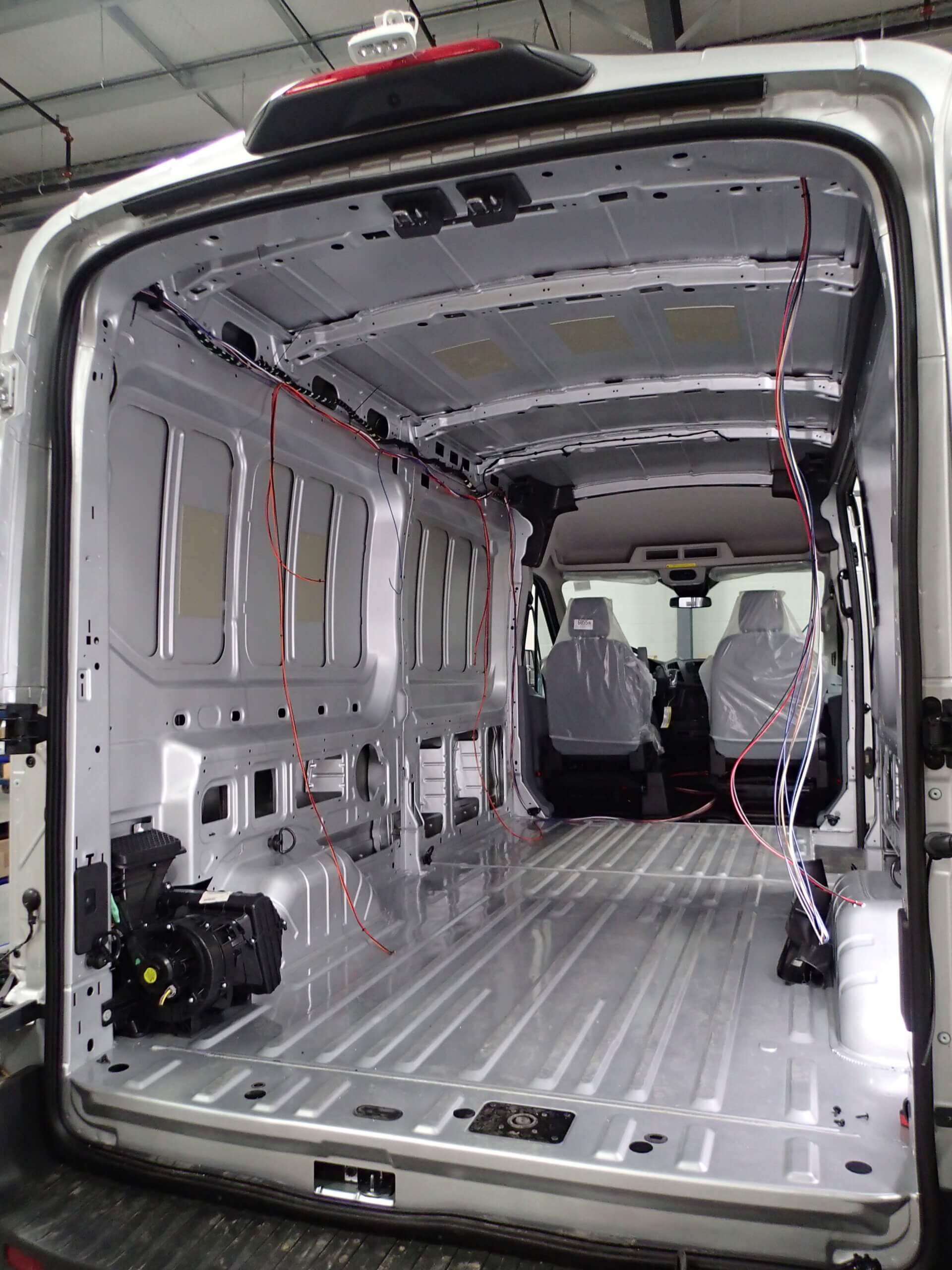

- Harness for installing from between front seats to rear door ceiling area with terminations at recommended accessory locations
- Overall length is 31.5 feet to properly fit medium height / long wheel base vans (extra harness must be carefully coiled up when used in smaller vans)
- Eliminates installers time and material cost for a custom made harness
-
Includes automotive grade cross link wires only for the following:
- Four (4) dome lights (dome lights included with PT insert)
- Optional PT-A-921 power vent
- Optional PT-A-916 rear load light (includes wires for front and rear switching)
- Three (3) 16 gauge spare wires for emergency lighting
- Two (2) 14 gauge and (1) 16 gauge additional spare wires are available if PT-A-921 is not used
- Optional accessory kits PT-A-921 and PT-A-916 do not include wiring and wire connectors
- Other optional accessory kits not listed above do include necessary wiring
- Terminals, wire ties or clamps for mounting and connecting to accessories are not included with harness (must be provided by installer)
- See installation instructions for details
Product Specs
- Gross Weight: 1 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
