Description
Product Features
- Supports Public Sector, Retail, Hospitality, Warehouse & Distribution, Energy & Utilities, Field Service, and other demanding environments

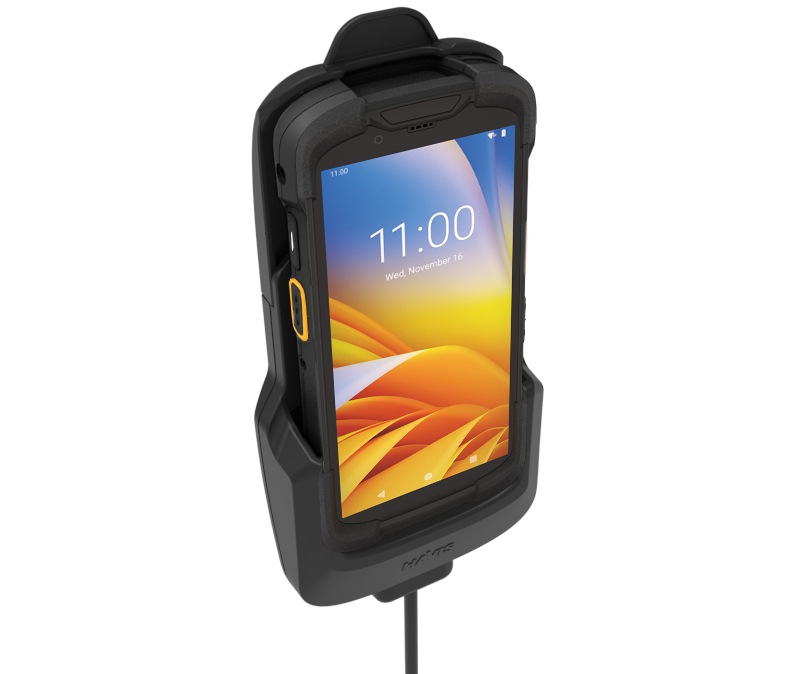

- Robust docking solution for Zebra TC73/TC78 and Workstation Connect
- Charging and data transfer via user replaceable USB-C cable
- Easy access to all TC73/78 buttons
- One handed docking and undocking
- Compact and lightweight design
- Supports extended battery and hand strap
- Polycarbonate construction ensures strength, ruggedness and extreme temperature resistance
- Rounded edges and corners for comfort and safety
- Integrated AMPs mounting pattern
Product Specs
- Dimensions: 9.06” (23.0 cm) H x 4.20” (10.7 cm) W x 2.19” (5.6 cm) D
- Compatible Packages: PKG-DS-ZEB-701
- Mounting: AMPS
- Communication Interface: USB-C to USB-C cable
- Working Voltage: 5 VDC
- Operating environment: -20°C to 50°C (-4°F to 122°F)
- Storage environment: -40°C to 85°C (-40°F to 185°F)
- Testing: Vibration Testing: MIL-STD 810H 514.8 Crash Testing: SAE J1455 30 mph Cycle Testing: Dock and undock for 20K cycles Environmental Testing: Hot/cold operating -20°C to 50°C (-4°F to 122°F) Environmental Testing: Hot/cold storage -40°C to 85°C (-40°F to 185°F)
- Product weight: 0.65 lbs. (0.29 kg)
- Gross Weight: 1 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
