Description
Product Features

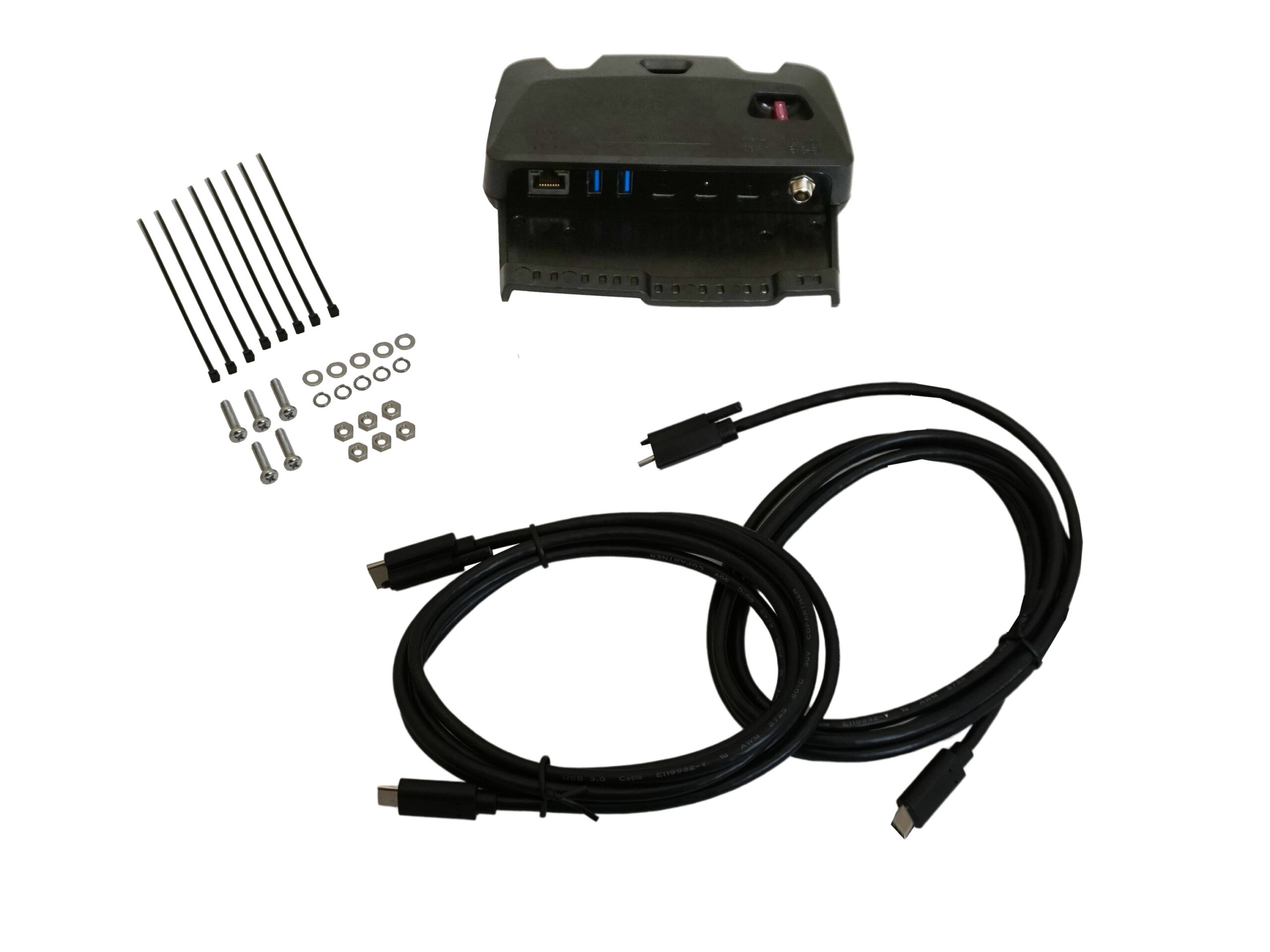

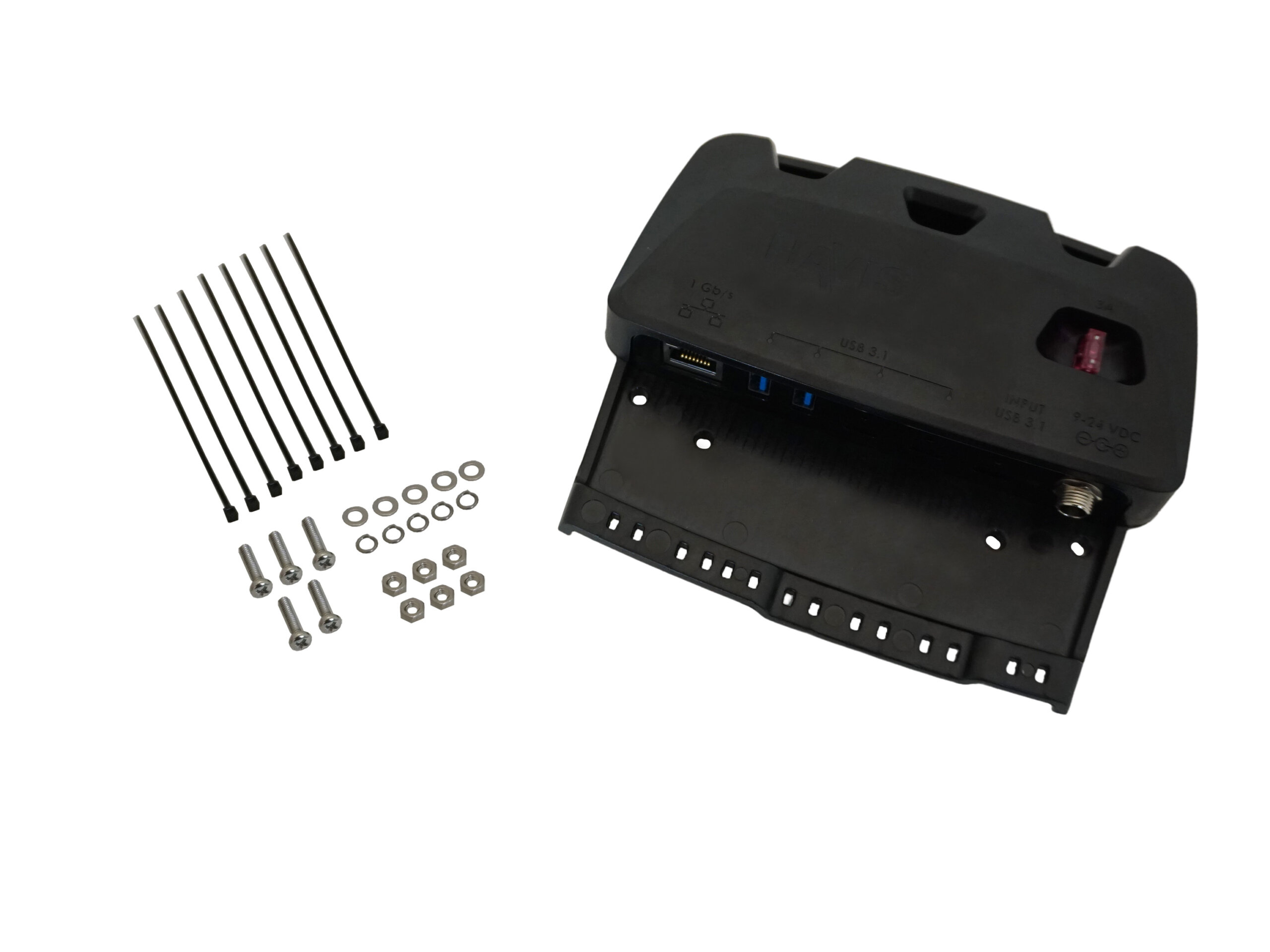

- Rugged USB-C Port Replication Hub with power cable, upstream USB-C cable, driver software, 3A fuse, and mounting hardware
- Ideal for use in unfavorable conditions where ruggedness and reliability is a necessity, such as mobile workplaces, manufacturing plants, shipping/loading docks, construction, and agricultural industries
- RJ45 Gigabit Ethernet port
- 2x Type C USB3.1 Gen1 ports with thumbscrew retention feature
- 2x Type A USB3.1 Gen1 ports
- Upstream USB-C cable included with thumbscrew retention feature
- User-replaceable 3.0A fuse
- Multiple mounting hole patterns including VESA75 enable secure mounting on flat surface
- Compact, lightweight Polycarbonate-ABS construction ensures durability and temperature resistance
- Diagnostic LED indicators for hub power and RJ45 Ethernet link activity
- Integrated strain relief secures cable connections, preventing disconnects and connector damage
- Economical expansion of peripherals for harsh work environments, such as in-vehicle video, GPS, scanners, card readers, and printers
- Internal power supply keeps peripherals safe from damage during over-voltage, engine cranking and voltage spikes
Product Specs
- Port Replication: (1) RJ45 Gigabit Ethernet port, (2) USB3.1 Gen 1 Type A ports (maximum current 0.9A), (2) USB3.1 Gen 1 Type C ports (maximum current 1.5A)
- Upstream connection: USB3.1 Type C upstream input with thumbscrew retention feature
- Power requirements: Internal power supply input range 9-36VDC
- Cables included: Type C upstream cable with thumbscrew retention feature, threaded power cable with cigarette lighter adapter
- Other items included: User-replaceable 3.0A fuse, mounting hardware
- Temperature range: Operating environment: -30° C to 70° C (-22° F to 158° F) Storage environment: -40° C to 85° C (-40° F to 185° F)
- Product Dimensions: 1.25” (3.18 cm) H x 5.65” (14.35 cm) W x 4.91” (12.47 cm) D
- Product Weight: 0.44 lbs. ( 0.20 kg)
- Gross Weight: 2 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
