Description
Product Features
- For 2024-2025 Chevrolet Blazer EV
- Fits all SS retail trim levels and PPV version

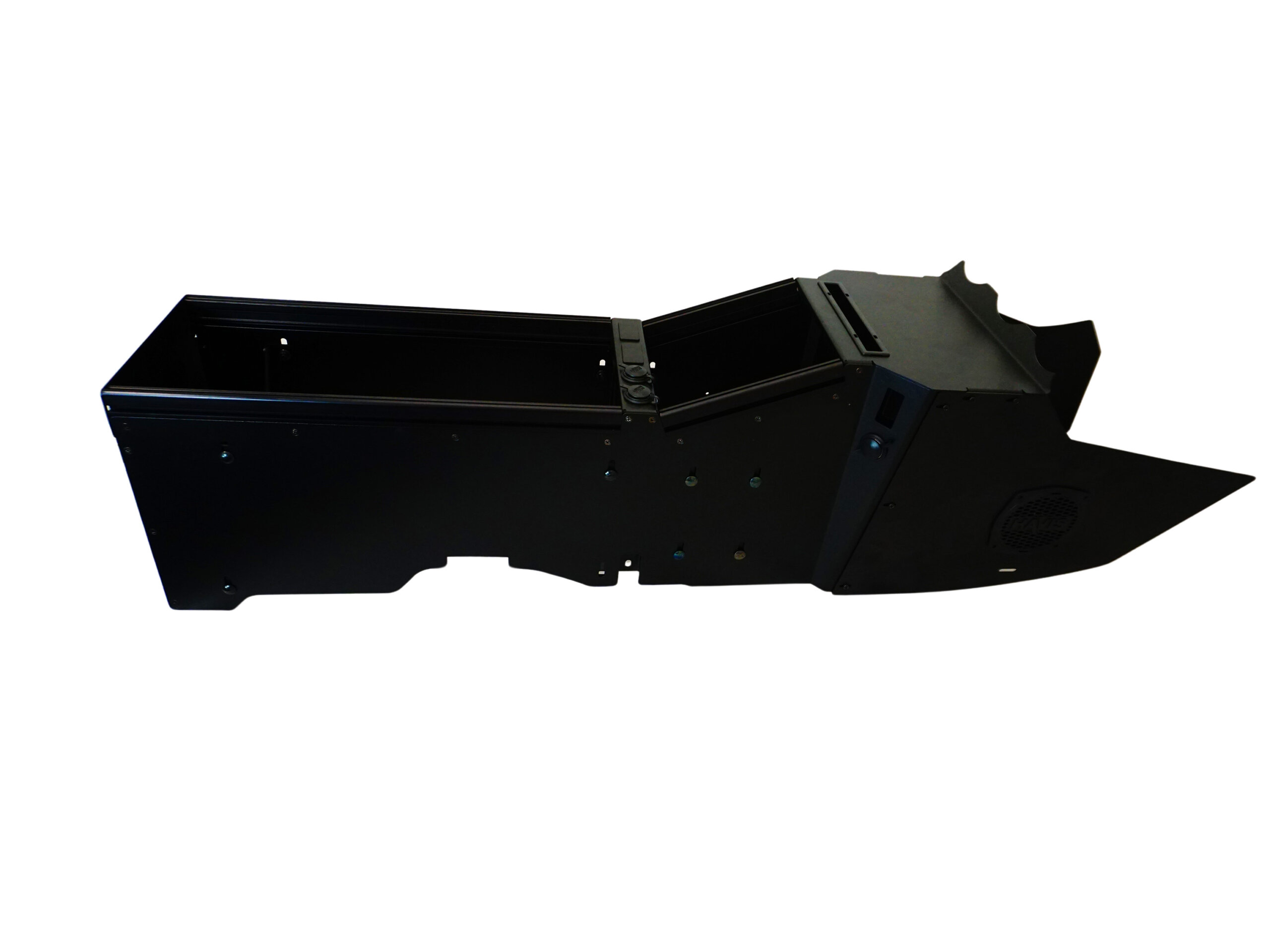

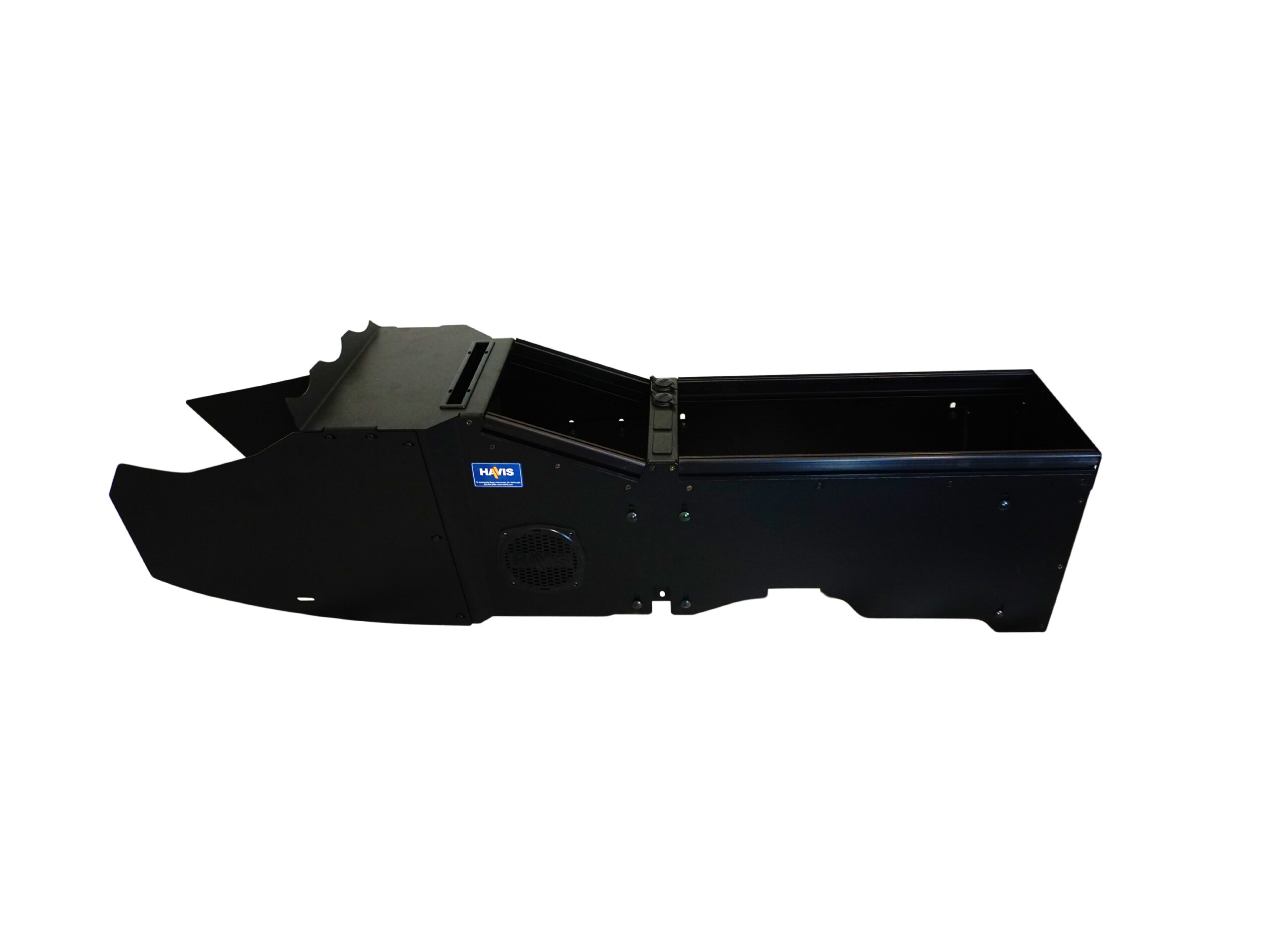

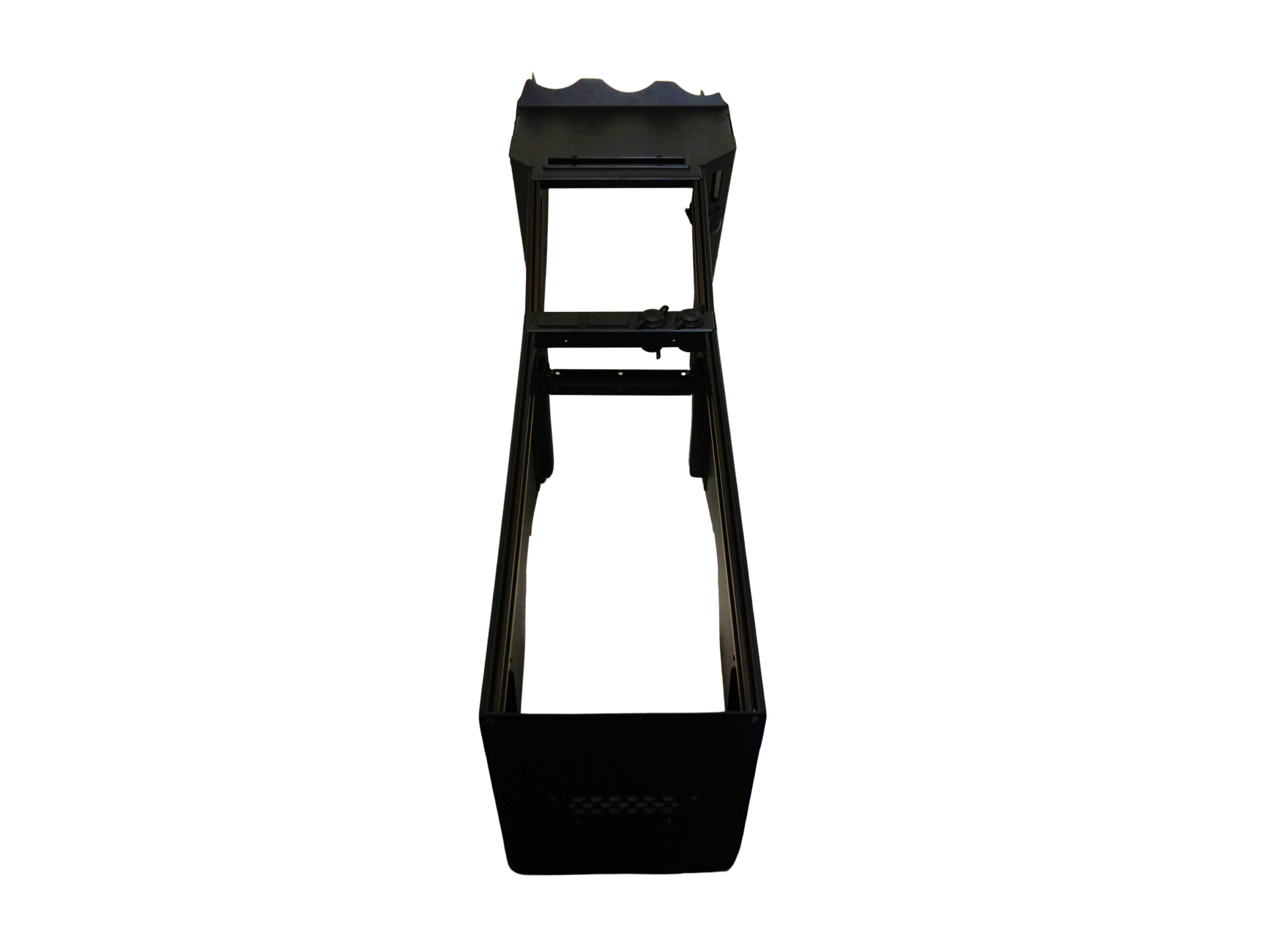

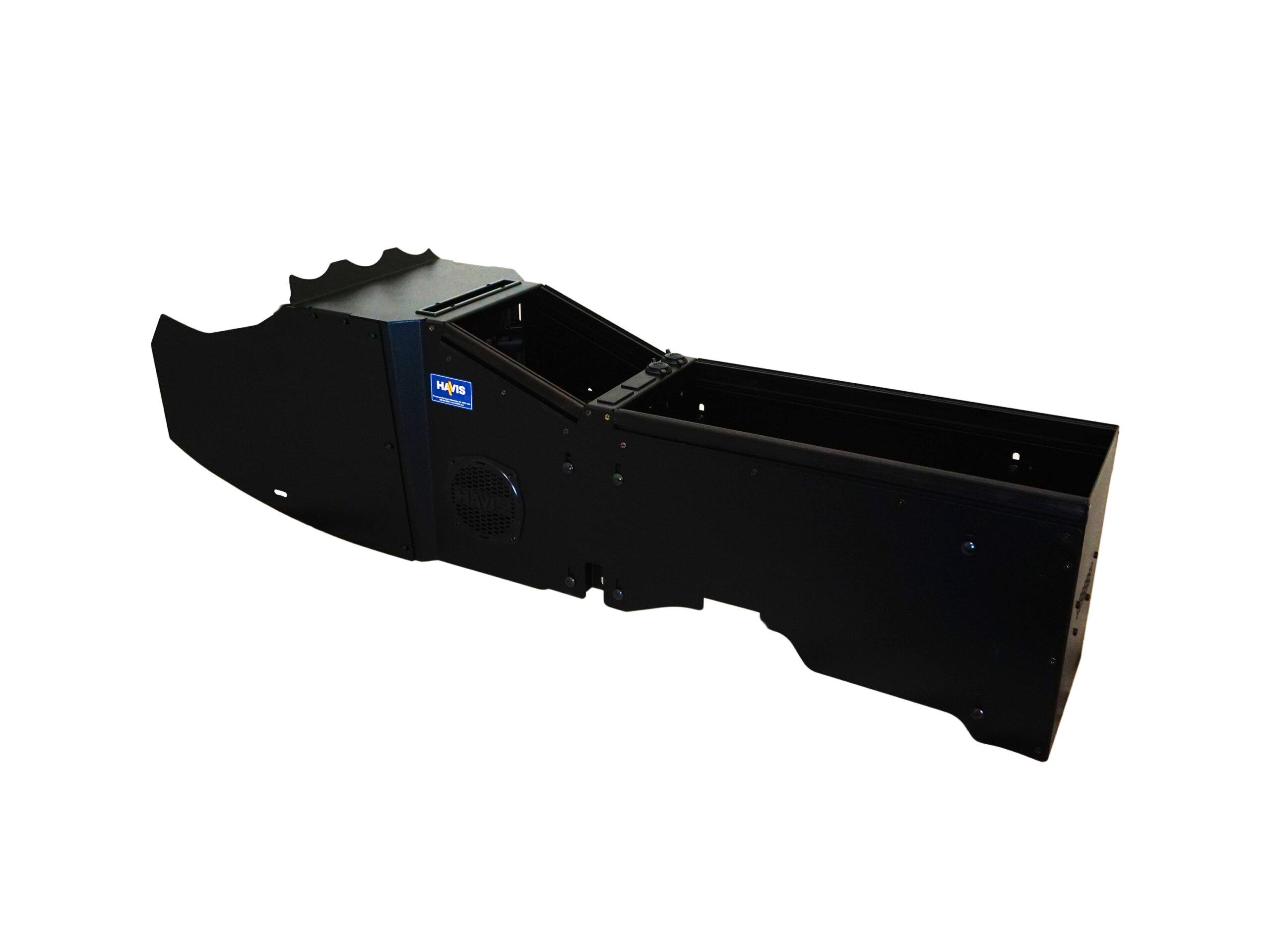

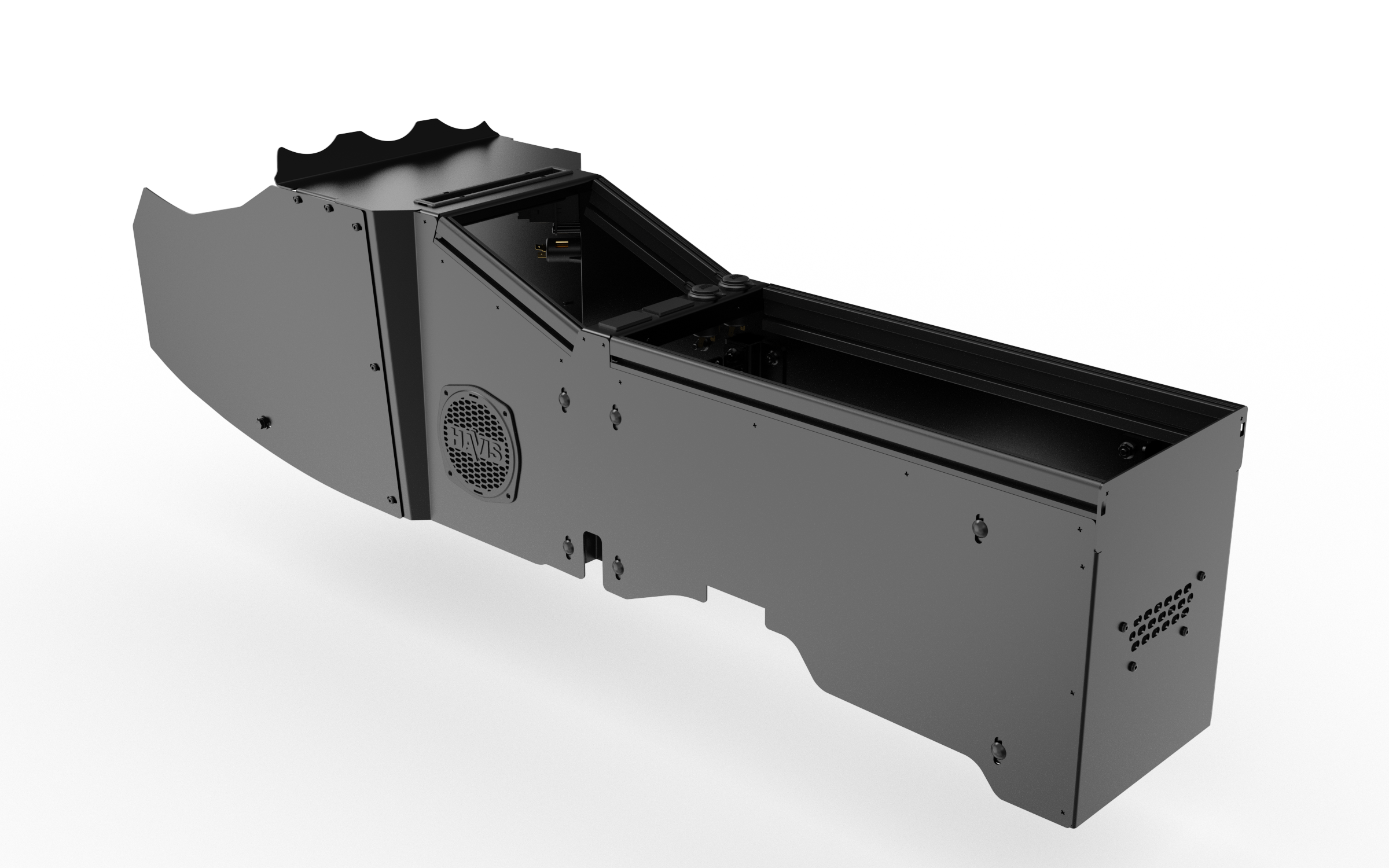

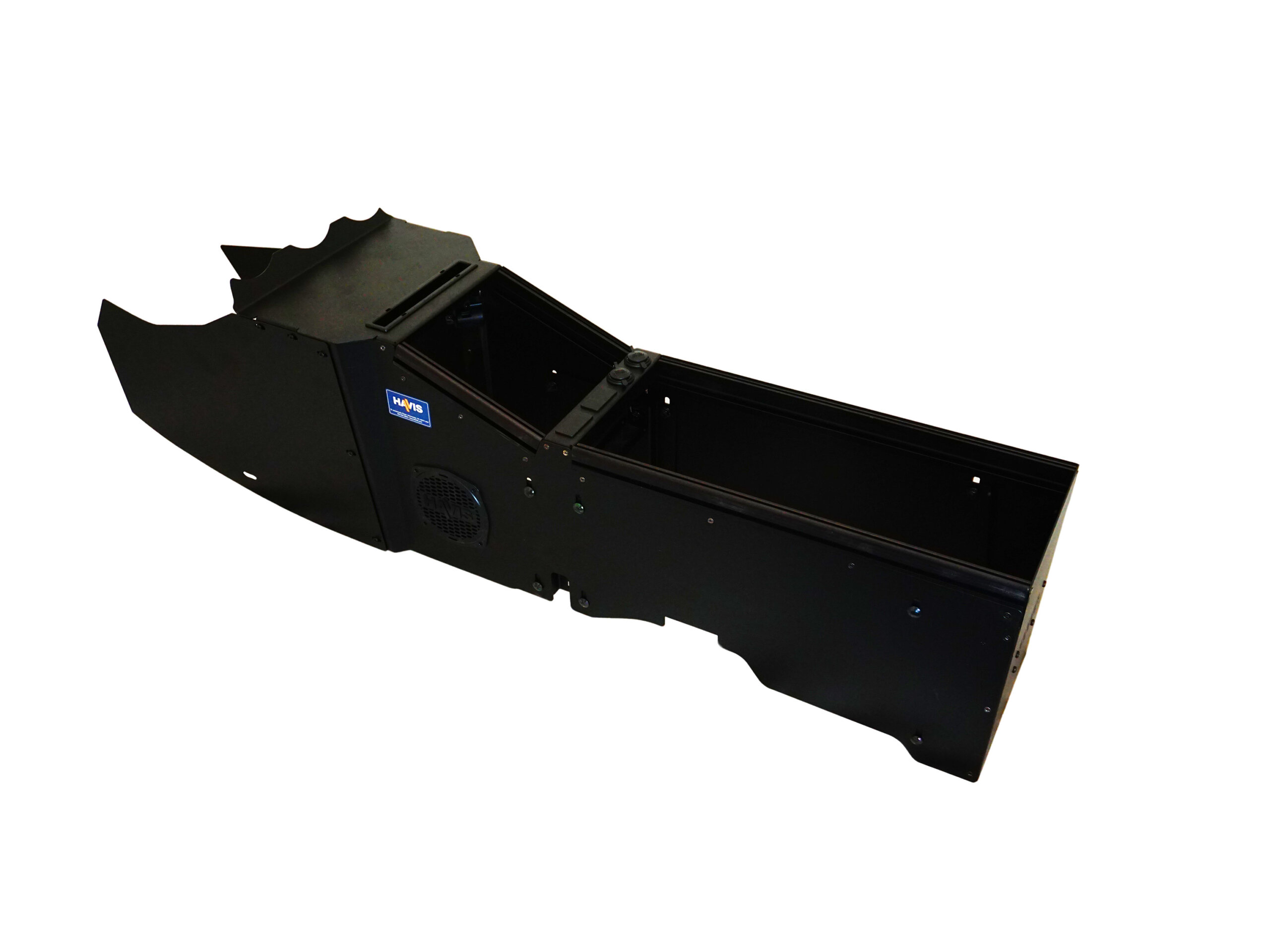

- Angled console with 28″ of total internal mounting spac
- 8″ in the front angled section, 20″ in the rear & 28° degree of angle
- Fits the contours of the lower dash and vehicle
- Allows for OEM duct pass-through to rear panel
- C-LDM-0012, C-HDM-204, and C-HDM-214 can be externally mounted on the passenger side
- Includes:
- Filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area less internal mount options
- Two (2) 2.58” speaker cutouts
- Cutout for OEM USB (required to be connected to vehicle)
- Three (3) additional 12 volt sockets with wire and fuse
- Two (2) rocker switch or dual USB charge module cutouts
- Mounting kit
- Accessory holder bin
- View console accessories here
- Made in USA
- Lifetime warranty
- Vehicle trim levels with OEM console installed require additional purchase of Chevrolet duct, PN 26401329
- 2025 Blazer EV PPV model and later, OEM USB and OEM USB wiring F harness must be purchased separately
- GM USB part number: 527865004. GM wiring F harness part number: 86592838
- OEM USB block off plate included
Product Specs
- Compatibility: Exclusive to the EV Blazer, incompatible with combustion Blazer
- Dimensions: 51.4″L x 12.3″W x 15.8″H (Length includes trim panels)
- Product Weight: 33.62 lbs
- Material: Heavy gauge steel
- Finish: Black Powder coat
- Gross Weight: 38 lbs
Availability, Lead Times and Shipping
Please note that ALL Gamber-Johnson and Havis mounting and docking equipment typically takes at least a week to ship. Lead times can often be 3-6+ weeks or longer depending on the exact items purchased. The following is guidance only and changes frequently.
- Basic mounting hardware such as plates or poles: 1-2 weeks to ship
- Vehicle-specific kits or more complex mounting solutions: 2-4 weeks to ship
- Powered docking stations with port replication: 4-8+ weeks to ship.
Please call, email, or chat with us to discuss lead times as it specifically relates to your needs. Expedited shipping methods selected at checkout do not speed up lead times but rather reduce transit time when an order ships.
